RMU Gas Tank Robot Laser Welding System Industrial Robot Automation Joint Manipulator Laser Welding Vision Recognition Laser Welding Machine Robot

Keywords:

RMU Gas Tank Robot Laser Welding System

Category:

Robot system

Hotline:

Detailed information

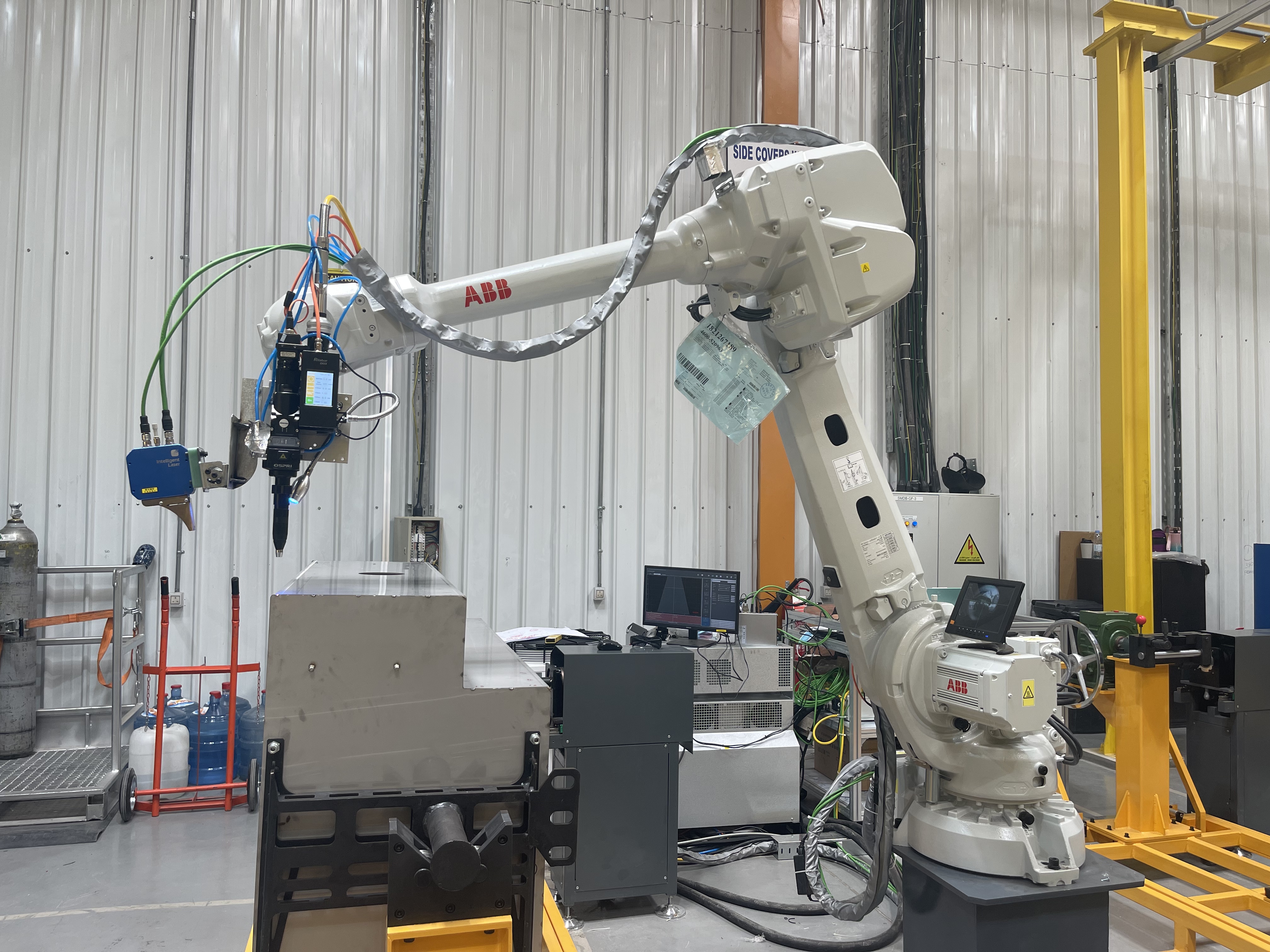

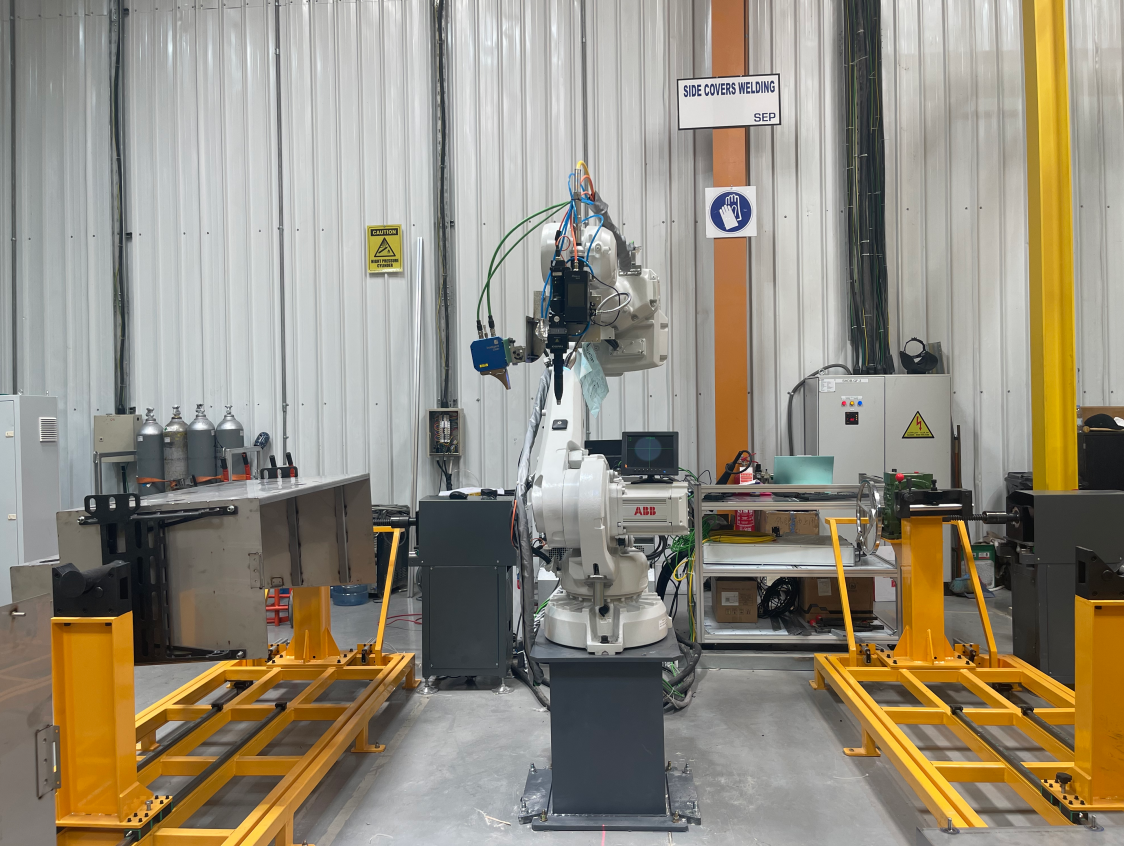

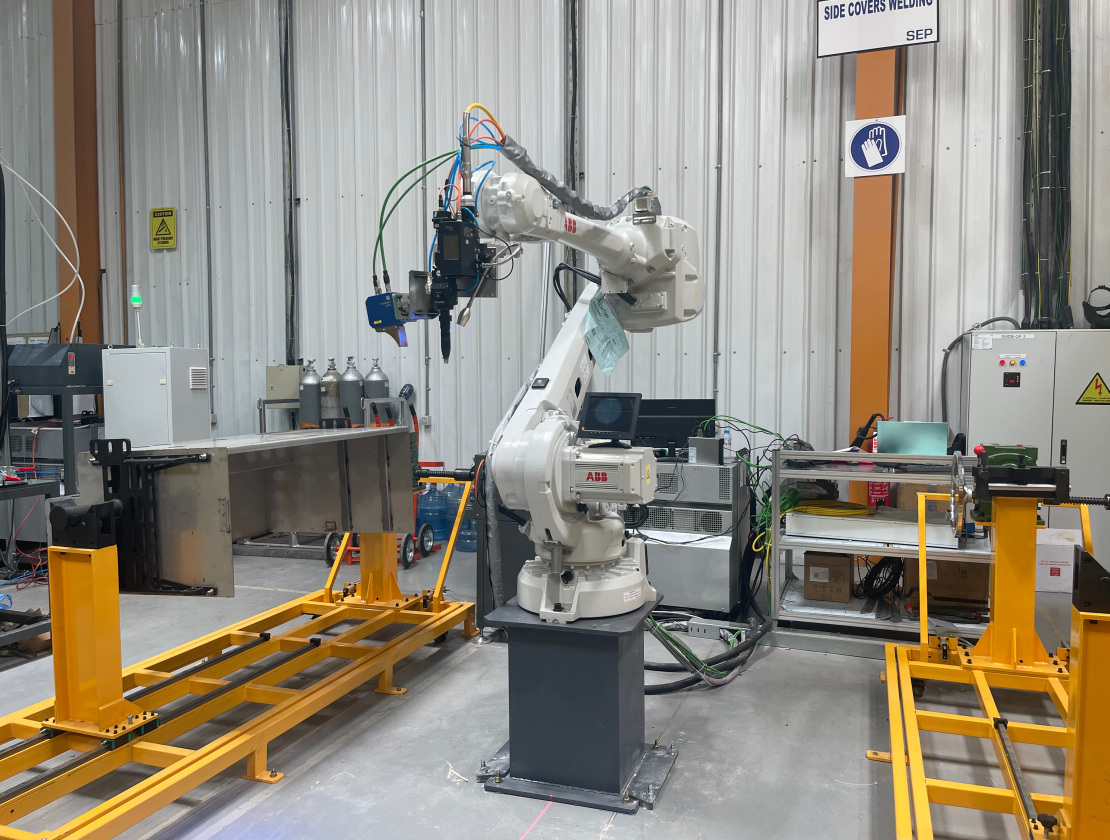

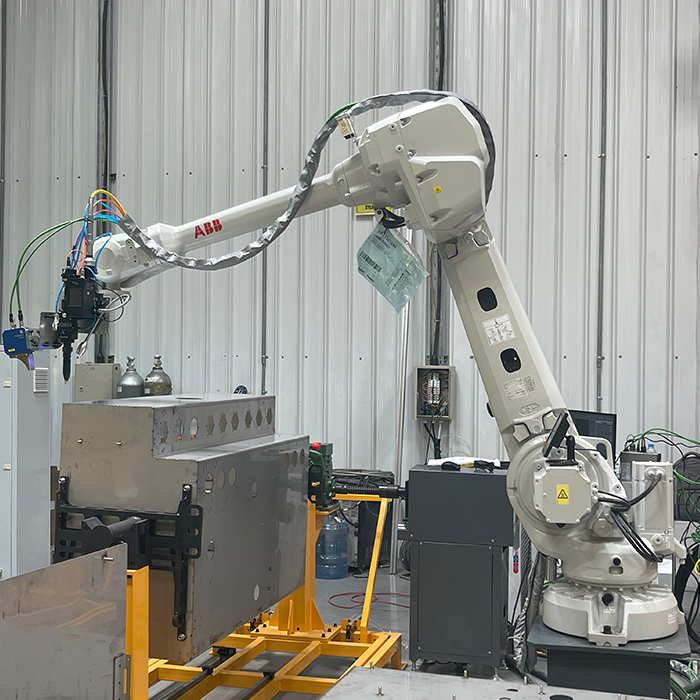

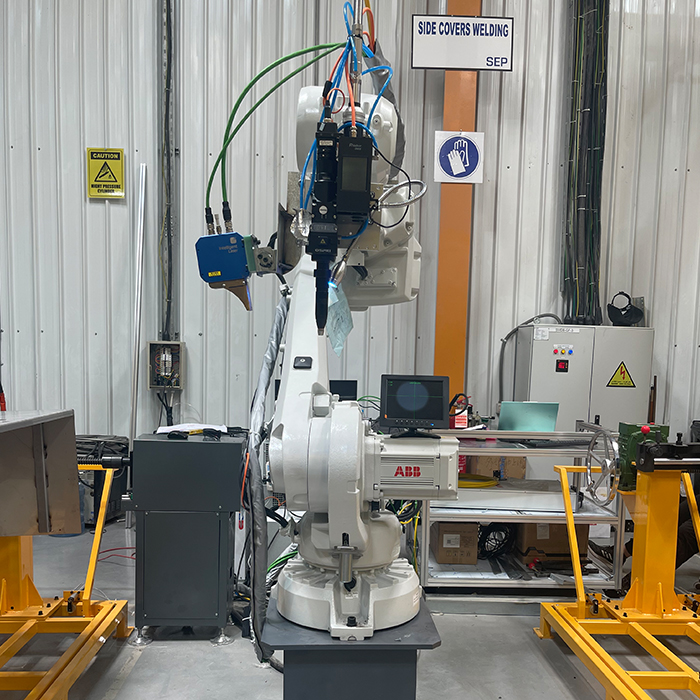

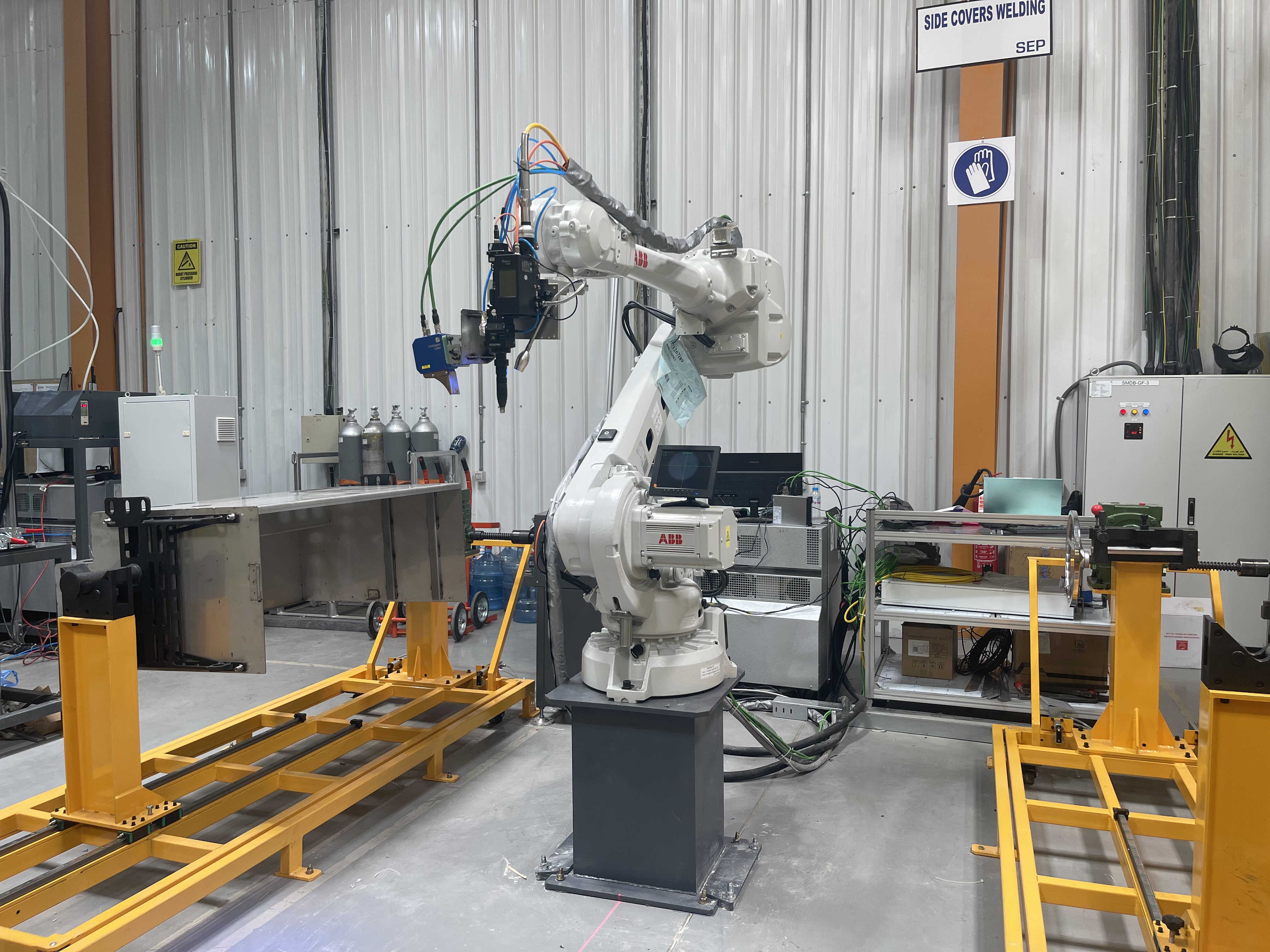

The inflatable cabinet robot automatic welding system developed by our company mainly consists of:

① welding robot and control system;

② fully digital laser welding system;

③ water cooler;

④ laser welding torch and accessories;

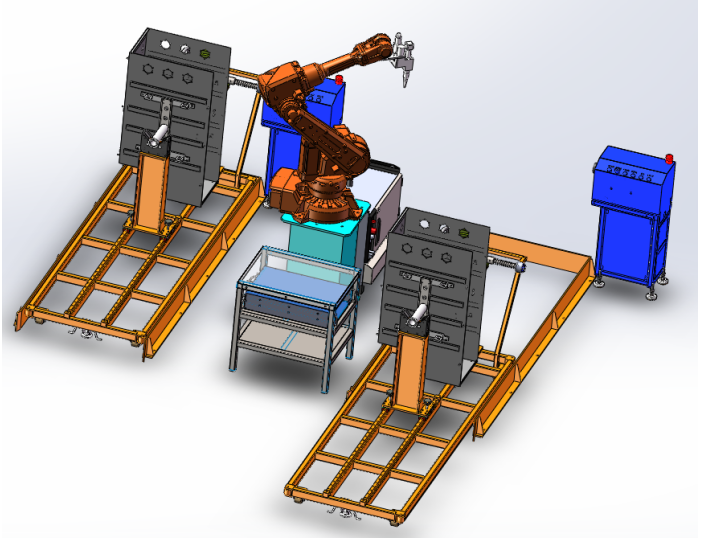

⑤ turnover table, etc.

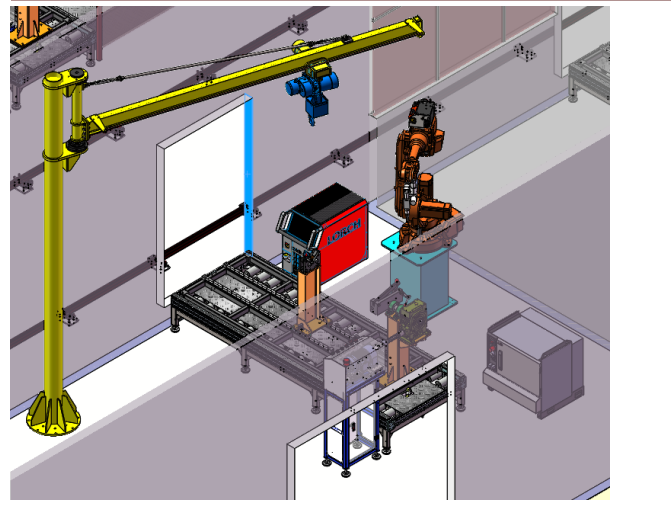

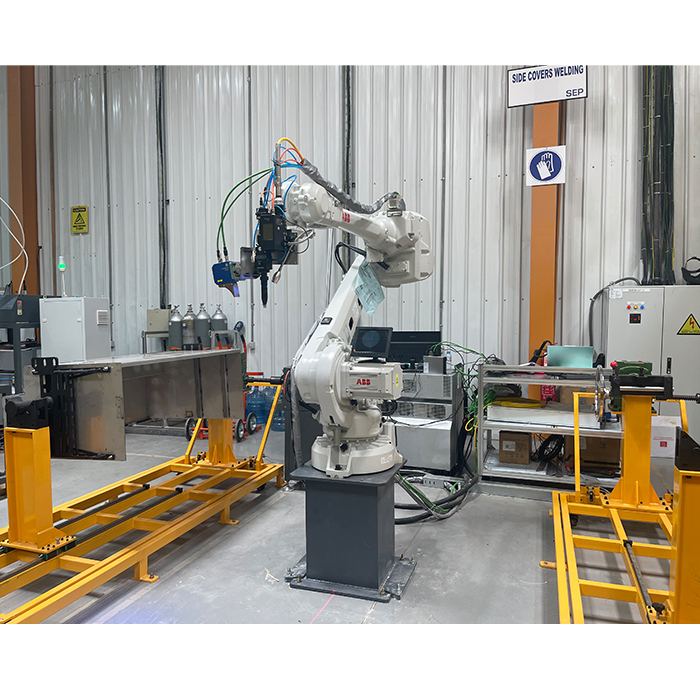

Present factory solution(with roller, move to station, no need crane loading and unloading)

Laser generator GW P6000

Output power (watts)	6000W
Work mode	Continuous output / Pulse output / Custom pulse mode
Output power adjustment range（%）	1-100%
Output laser wavelength (nanometers)	1075 ± 10 nm
Output the quality of the light spots.	BBP≤ 4 ,100
Power stability	< 2%（25 ± 1 °C）
Maximum modulation frequency	50kHz
Laser response time	< 10us
Indicate the laser wavelength (nanometers).	650
Indication of optical power adjustable range (milliwatts)	0.5-1

(2)Fiber optic transmission system

Interface	QBH/Q+
Transmission optical fiber core diameter and length	100μm/20m
Optical fiber cable length	L20±0.5m Standard length 20±0.5m (other sizes can be customized)

(3)Cooling specifications

Minimum cooling capacity requirement	8 kW
Minimum flow requirement	50 L/min
Coolant temperature range	25 ± 3 °C
Coolant hydraulic requirements	5-6 bar
Coolant TDS Concentration	within 15ppm

(4)Electrical and environmental requirements

Input voltage	380VAC/50Hz/60Hz
Electricity consumption	<= 10 kW
Work environment temperature range	5 - 45°C
Work environment humidity range	<=95 degree

(5)Control interface

Digital signal	24 VDC
Power control	0-10 V DC (≤10 μs Level, resp. a pulse period)/Digits
Switch control signal	24 VDC
Control port	TTL / RS232 (HMI) / Ethernet / Databus
