CSD-6080-5A Automatic Wire Harness Processing Line
Automate secondary wire processing with the CSD-6080-5A. The line combines wire feeding, cutting, stripping, marking-tube insertion, terminal crimping, and label printing to support control cabinet wiring production.
Keywords:
automatic wire harness processing machine，secondary wire processing lincontrol cabinet wire processing equipment，automatic wire marking tube insertion machinee，automatic wire cutting stripping and crimping machine，
Category:
Smart device
Hotline:
Detailed information
Processes mixed wire specifications based on production work orders
Supports wire lengths from 300 to 5,000 mm
Includes wire feeding, cutting, stripping, crimping, and label printing
Imports production orders via USB or internal LAN
Uses a 6-ton servo crimping machine

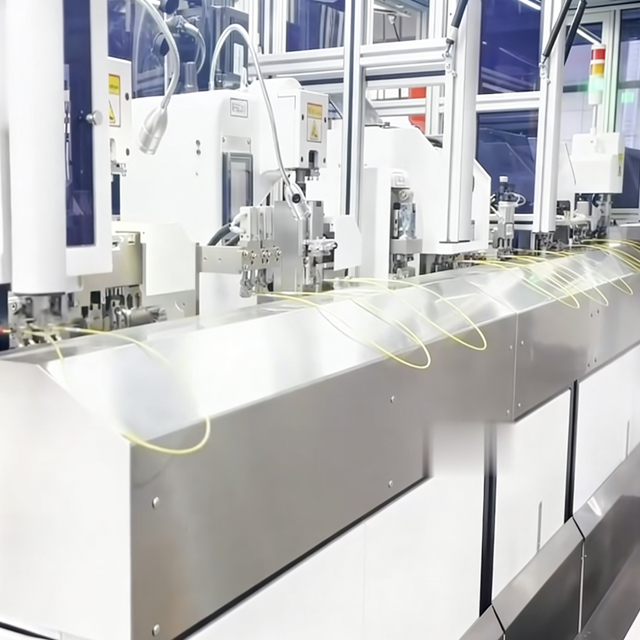

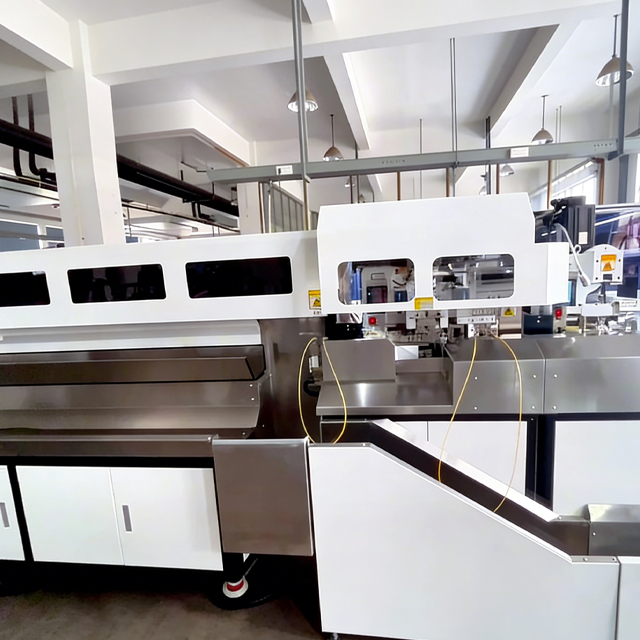

Automated secondary wire processing for cabinet wiring
The CSD-6080-5A integrates key secondary-wire preparation operations into one automated line. Based on an imported production work order,
the machine selects and feeds wire, cuts it to length, applies printed wire-number tubes where configured, strips and prepares wire ends,
crimps compatible terminals, prints identification labels, and collects the finished wires.
The system is designed for production involving different wire diameters, lengths, wire numbers, colors, and terminal specifications.
Work orders can be imported through USB or an internal LAN. The line can print labels identifying wire groups,
such as cabinet and component references, to support downstream cabinet wiring and organization.
Integrated process functions
Depending on the final configuration and work order, the line can include:

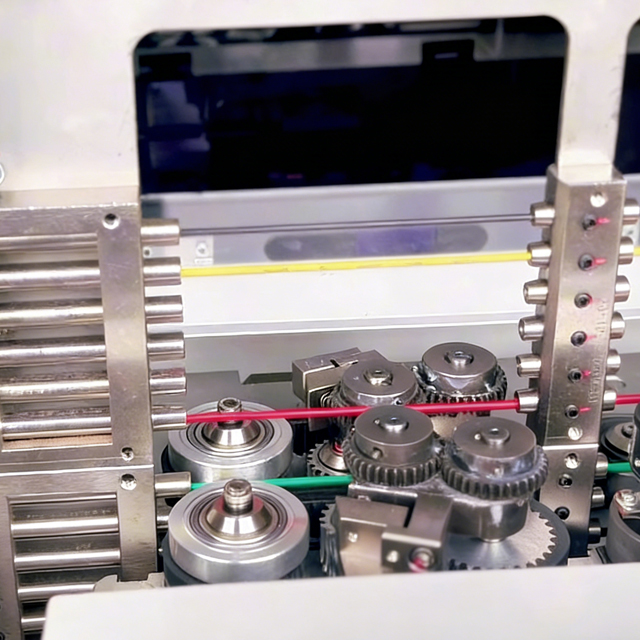

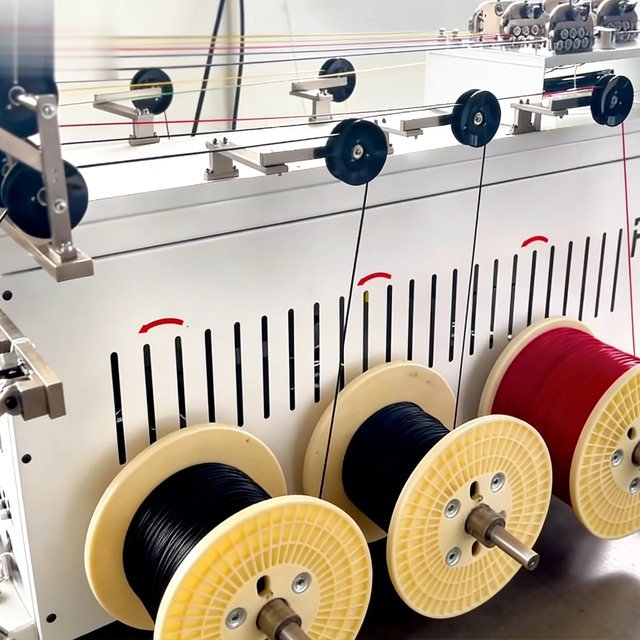

•Automatic wire selection and feeding from multiple wire sources.

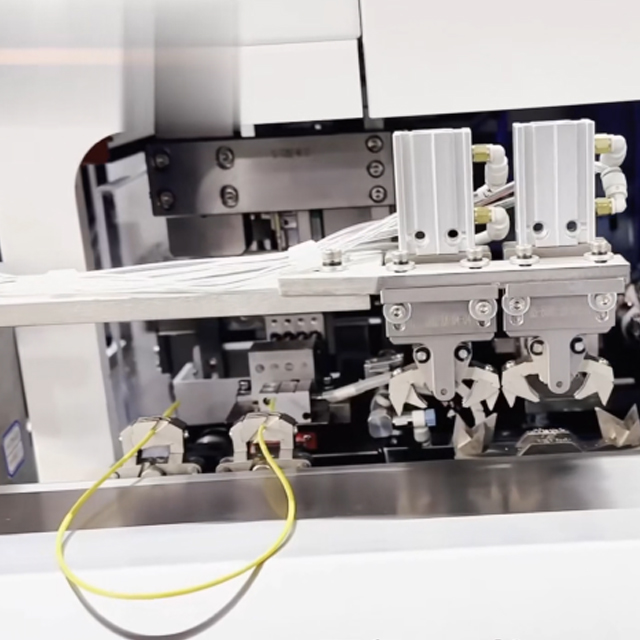

•Wire cutting and end stripping.
•White and red PVC wire-number tube application and printing.
•Wire-end twisting and flattening.

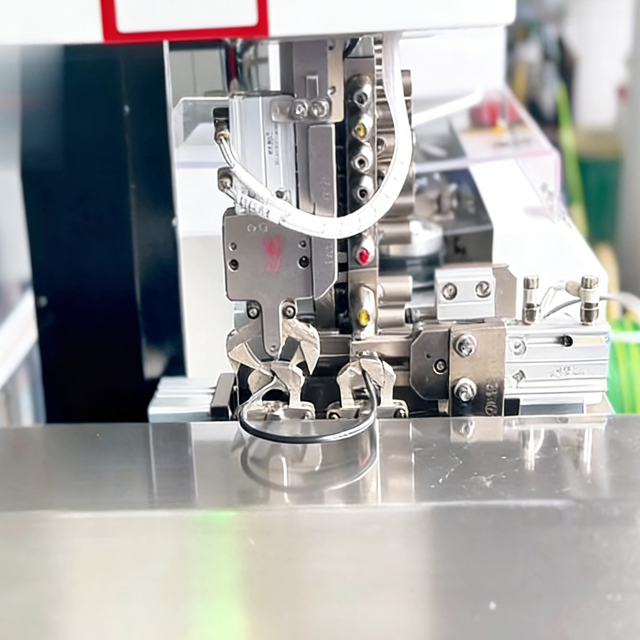

•Servo terminal crimping at multiple stations.
•Label printing for wire-group identification.

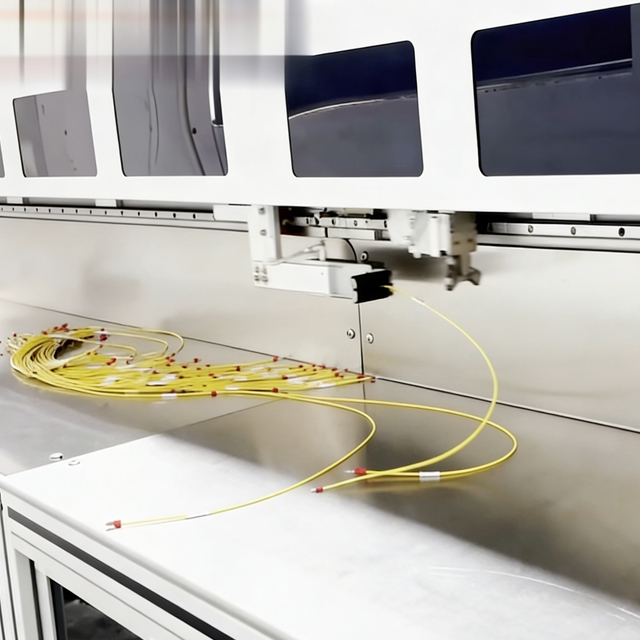

•Finished-wire collection.
