Rittal Style Heavy Duty Adjustable Workbench Frame Versatile Assembly Workstation Solution Industrial Assembly Station
Rittal Style Adjustable Assemble Workbench Frame for Industrial Workstations
Keywords:
Adjustable Assemble Workbench
Category:
Smart device
Hotline:
Detailed information

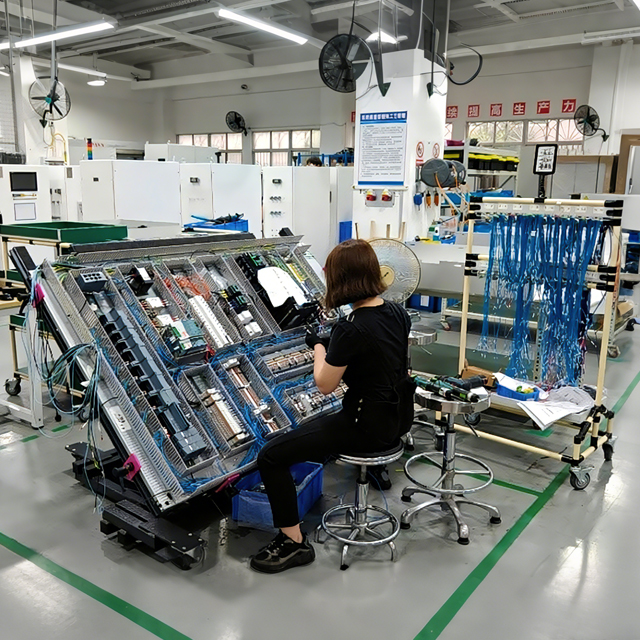

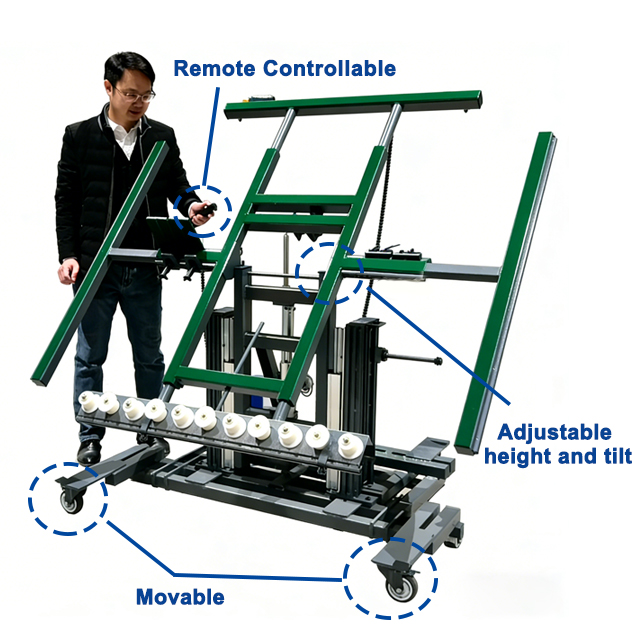

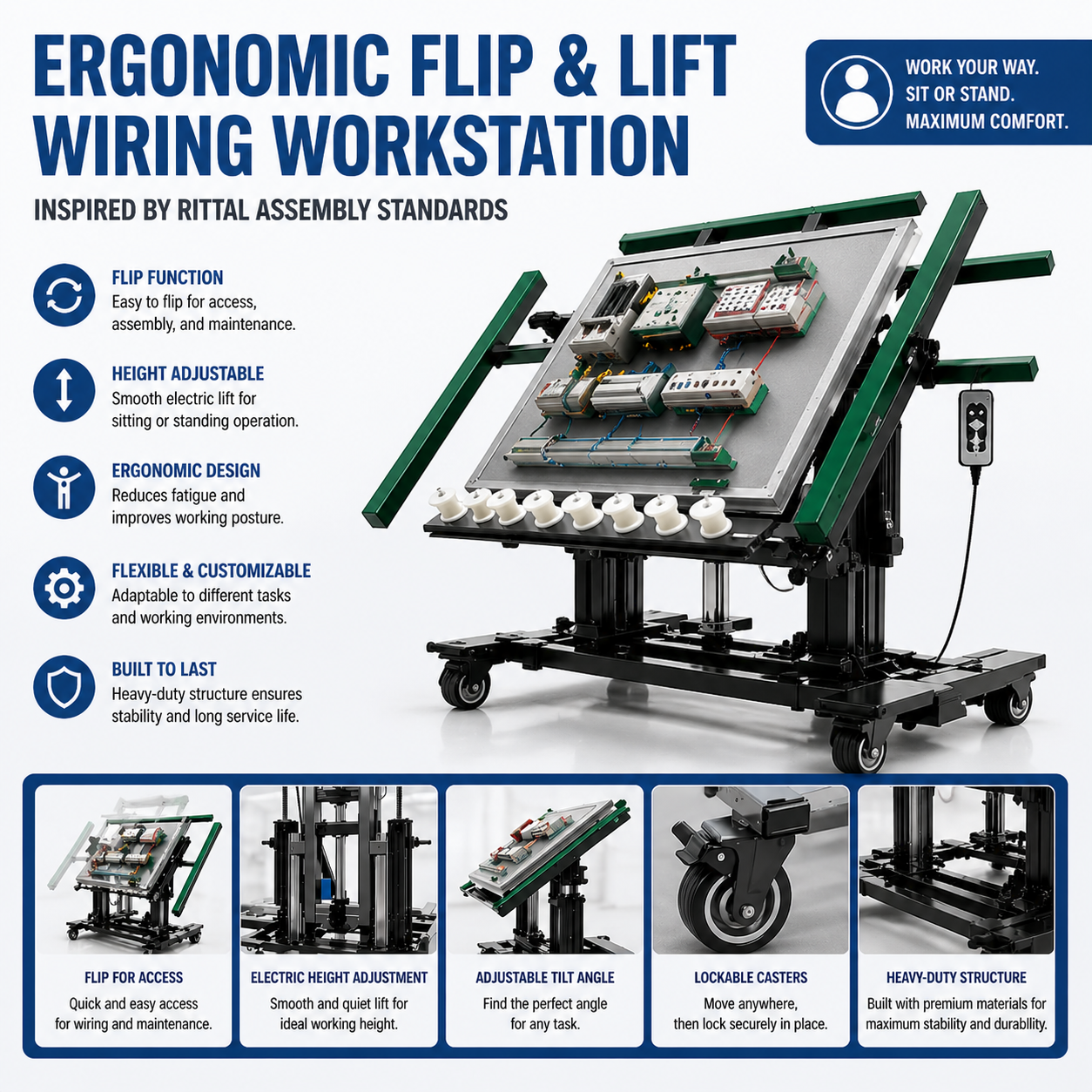

The Electric Adjustable Wiring Workstation is a professional solution developed for electrical cabinet assembly, control panel wiring, and industrial electrical installation.With motorized height adjustment, electric tilt positioning, mobile design, and flexible accessories, the workstation helps electricians optimize their working posture, reduce fatigue, and improve production efficiency. It is ideal for switchgear manufacturers, automation companies, machine builders, and industrial maintenance departments.
1.Technical Specifications
Overall dimensions
W1400mm*D1250mm
Maximum load capacity
300kg
Flip angle
0-80°
Adapt to the size of the installation board
W582mm*H680mm to W1900mm*H1900mm
Countertop height
830mm to 1130mm
Assembly scope of AE box
W300*H300*D100 to W1400*H1400*D350
AE box maximum load-bearing capacity
150kg
Requirements for the height of the installation board above the ground
150mm to 470mm
Side cabinet requirements
Two guide rails need to be configured inside the cabinet
2.Manual vs. Electric Assembly Table
Feature Manual Assembly Table CS Industry Electric Table Adjustment Method Manual cranking or foot pedal — requires physical effort Wireless Remote Control — adjustment at the push of a button Tilt Function Often limited to fixed angles or slow manual tilting 0° – 68° Continuous Tilt — smooth and precise positioning Height Adjustment Fixed height or very difficult to adjust while loaded Smooth Electric Lifting — find the perfect ergonomic height Operator Fatigue High — repeated bending, lifting, and cranking causes back strain Minimal — 100% ergonomic design protects worker health Setup Time 5–10 minutes for positioning and locking Under 1 Minute — instant positioning saves valuable time Power Dependency N/A Battery Powered — 100% cable-free and mobile in the workshop Work Efficiency Standard throughput Up to 40% Higher Throughput due to faster changeovers Safety Risk of strain or cable trip hazards if using cords High Safety — stable locking and cable-free operation
.jpg "Rittal Adjustable Assemble Workbench Frame (3).jpg")
.jpg "H595b13c656644a7380ca86c56d4dcd476 (1).jpg")
.png "Hf5f733042c084fea987f4c3b0cc9cec36 (1).png")
Certifications & Quality Assurance
SGS Product Testing Certificate
CE Compliance Certificate
Product Quality Inspection Reports
Product Performance Testing Reports
Manufacturing Quality Control Documentation
FAQ
1.How can I confirm if your product fits my vehicle or application?
A: Please provide your vehicle model, OEM number, product specifications, or application requirements. Our professional team will help confirm product compatibility and recommend the most suitable solution to meet your needs.
2.What quality control measures do you have?
A: CSD Auto follows strict quality control procedures throughout the entire production process, including material inspection, manufacturing process control, and final product testing to ensure product reliability and consistent performance.
3.Do you support customized products?
A: Yes. We provide customized solutions based on customer requirements, including product specifications, design adjustments, materials, packaging, and OEM/ODM cooperation.
4.How do you guarantee product quality consistency for large orders?
A: We maintain consistent product quality through strict production management, standardized processes, supplier control, and inspection procedures before shipment. Our goal is to provide stable quality for long-term business cooperation.
5.Can you support small trial orders before bulk purchasing?
A: Yes. We understand that customers need to evaluate product performance before large orders. Trial orders and sample evaluation can be discussed according to product requirements.
