Fully Automatic MV LV Assembly Production Line – Industry 4.0 Ready
This fully automatic MV LV assembly line is designed for high-speed, precision assembly of medium and low voltage switchgear and panels. Robotic stations, modular conveyors, and real-time SCADA integration support smart factory requirements. Integrated automated electrical testing station performs hi-pot, continuity, and insulation resistance tests in-line.
Keywords:
Category:
Production line
Hotline:
Detailed information
Core Components and Process Flow of Medium-Voltage Switchgear Production Line
I. Critical Processing Equipment
00001.
Sheet Metal Processing Section
00002.
Laser Cutting Unit: High-power fiber laser equipment cuts stainless steel/aluminum alloy plates with ±0.1mm accuracy23
CNC Bending Unit: Servo-electro-hydraulic hybrid press brake achieves automatic cabinet frame forming, with ±0.05° repeat positioning precision2
Automatic Welding Unit: Inert gas chamber (Ar/He) meets explosion-proof welding requirements1
00003.
II. System Integration & Testing
Module | Equipment | Specifications |
Primary Circuit Assembly | 6-axis collaborative robot | ±0.2mm accuracy for 35kV bushing installation1 |
Secondary Wiring Integration | Auto-crimping + heat-shrink terminal machine | Terminal error rate <0.01%7 |
Full Machine Testing | MES-integrated withstand voltage platform | AC 42kV/1min, partial discharge <5pC4 |

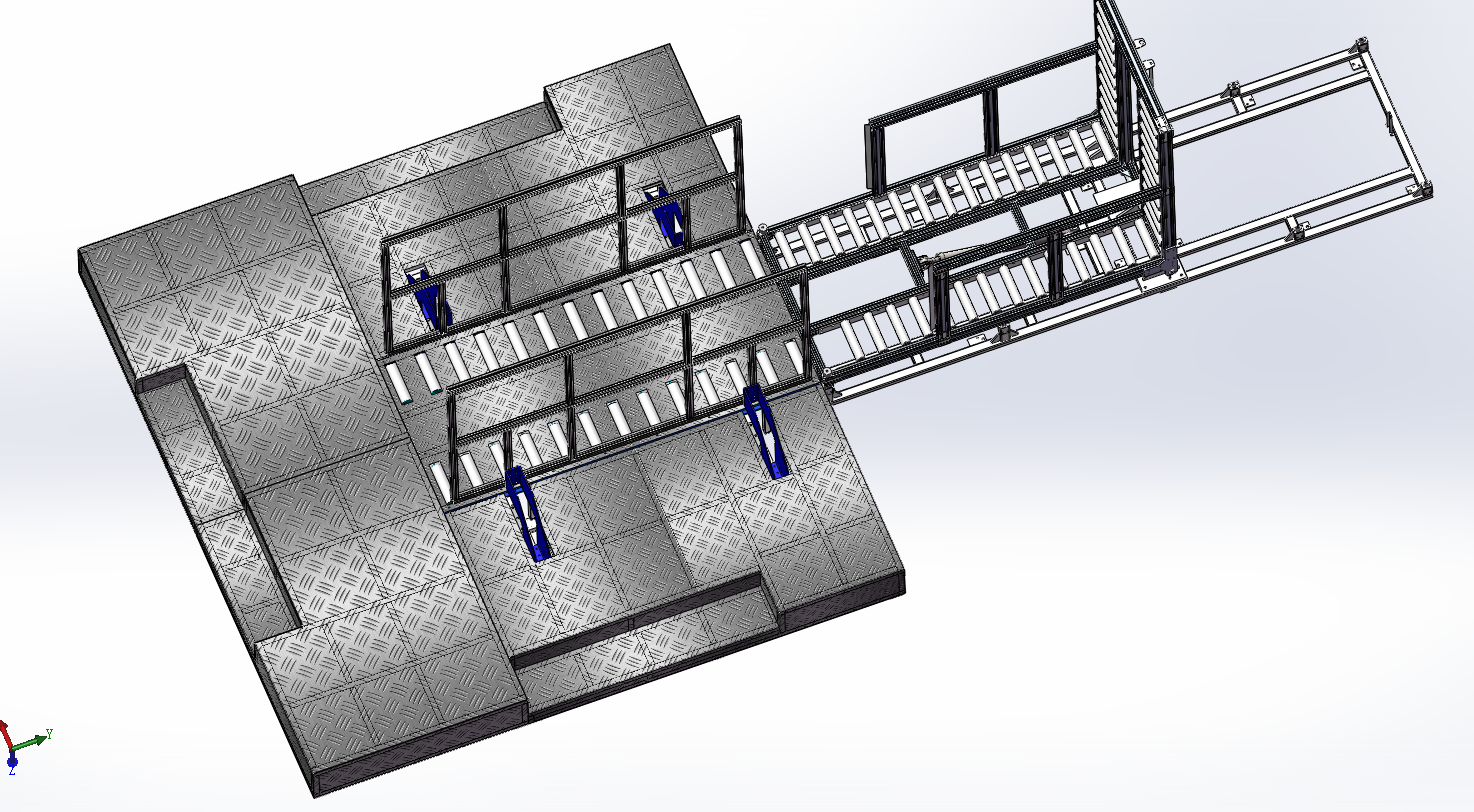

Logistics Conveying | SLAM-guided RGV + magnetic rail roller line | 1.2-ton capacity, 0.5m/s speed23 |
Core Advantages of Modular Design in Medium-Voltage Switchgear Production Lines
I. Cost Optimization
· Reduced Manufacturing & Procurement Costs:
Modular design enables standardized mass production, lowering unit manufacturing costs by >30%, reducing spare parts inventory by 50%, and cutting procurement expenses by 25%.
· Space Compression & Cost Savings:
Slim-line cabinet design (e.g., 550mm width) saves 40% floor space versus traditional solutions, reducing civil engineering investments. Vertical stacking capability eliminates expansion costs27.
· Breakthrough in Installation Costs:
Increased factory pre-assembly reduces on-site wiring by 70%, cuts installation cycles by 50%, and saves over ¥600,000 in labor costs27.
II. Production Efficiency Enhancement
· Rapid Deployment & Flexibility:
Modular production lines support parallel operations, slashing product assembly time from 2 hours to 30 minutes. Line cycle time reduction boosts output by 30%-50%58.
· Smart Manufacturing Integration:
Combines collaborative robots (e.g., 6-axis arms) with plug-and-play interfaces, enabling automated assembly and debugging with <0.01% error rate78.
III. Operational Efficiency Improvement
· Swift Fault Resolution:
Modular independence achieves 90% fault localization accuracy, shortening repairs from 4 hours to 30 minutes. Standardized interfaces ensure 100% cross-batch compatibility69.
· Predictive Maintenance:
Embedded sensors monitor real-time parameters (temperature/vibration). Combined with digital twin technology, predicts residual lifespan with <5% error, extending maintenance cycles to 18 months and cutting costs by 40%36.
IV. Safety & Reliability
· Physical Isolation Protection:
Independent compartments (e.g., circuit breaker/busbar chambers) separated by 3mm metal barriers withstand 20kA arc energy, containing fault propagation. Leakage rate ≤10⁻⁶ Pa·m³/s46.
· Seismic & Environmental Resilience:
Flexible connectors (e.g., 3D-adjustable locking devices) tolerate ±15° deviation. Cabinet deformation is only 1.2mm in simulated magnitude-9 earthquakes. Operates at ≤75dB(A) noise in -5~40°C environments69.
V. Scalability & Sustainability
· Flexible Configuration:

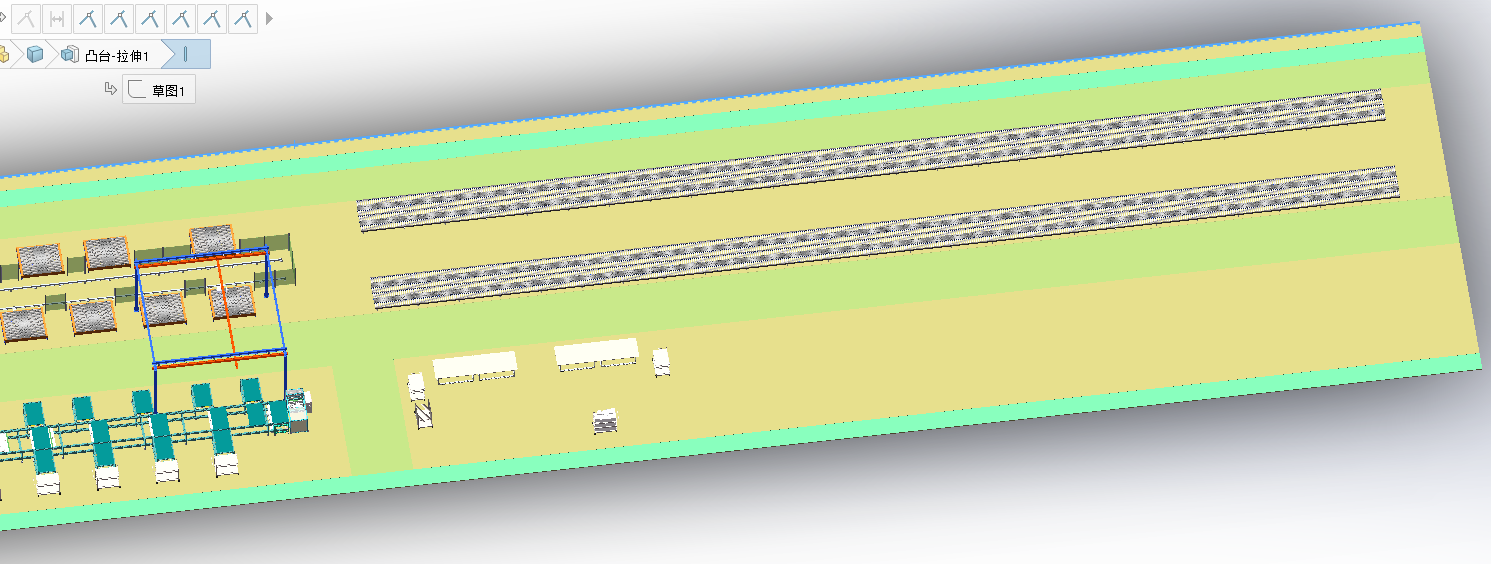

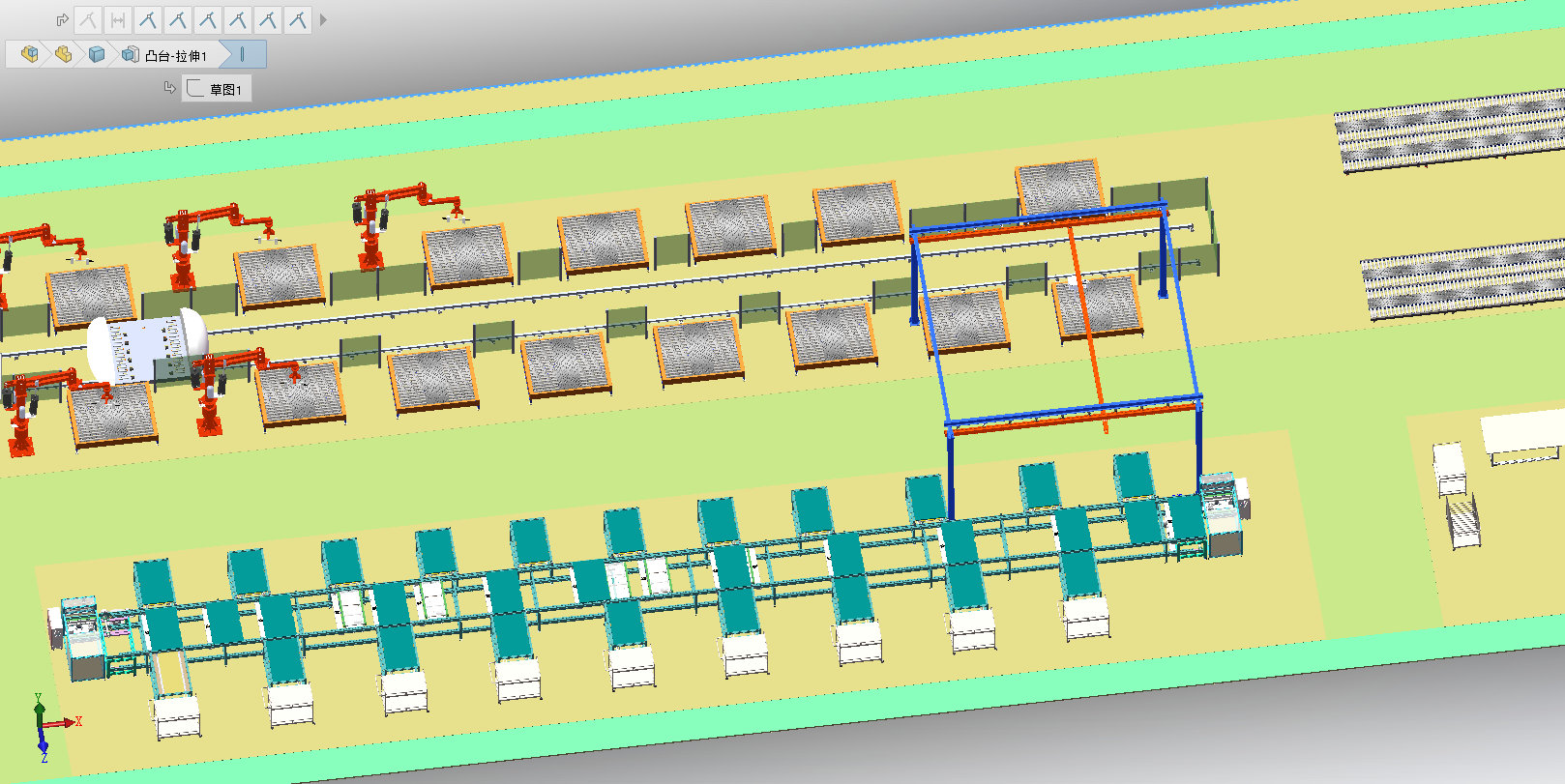

Supports 1–4-unit cabinet combinations via reserved rails and standardized interfaces for plug-and-play modules. Compact production line layout (94m×15m)35.
· Eco-Compliance:
SF₆-free insulation design (using vacuum interrupters or C4F7N gas mixtures) complies with EU F-gas regulations, reducing greenhouse emissions
